Description

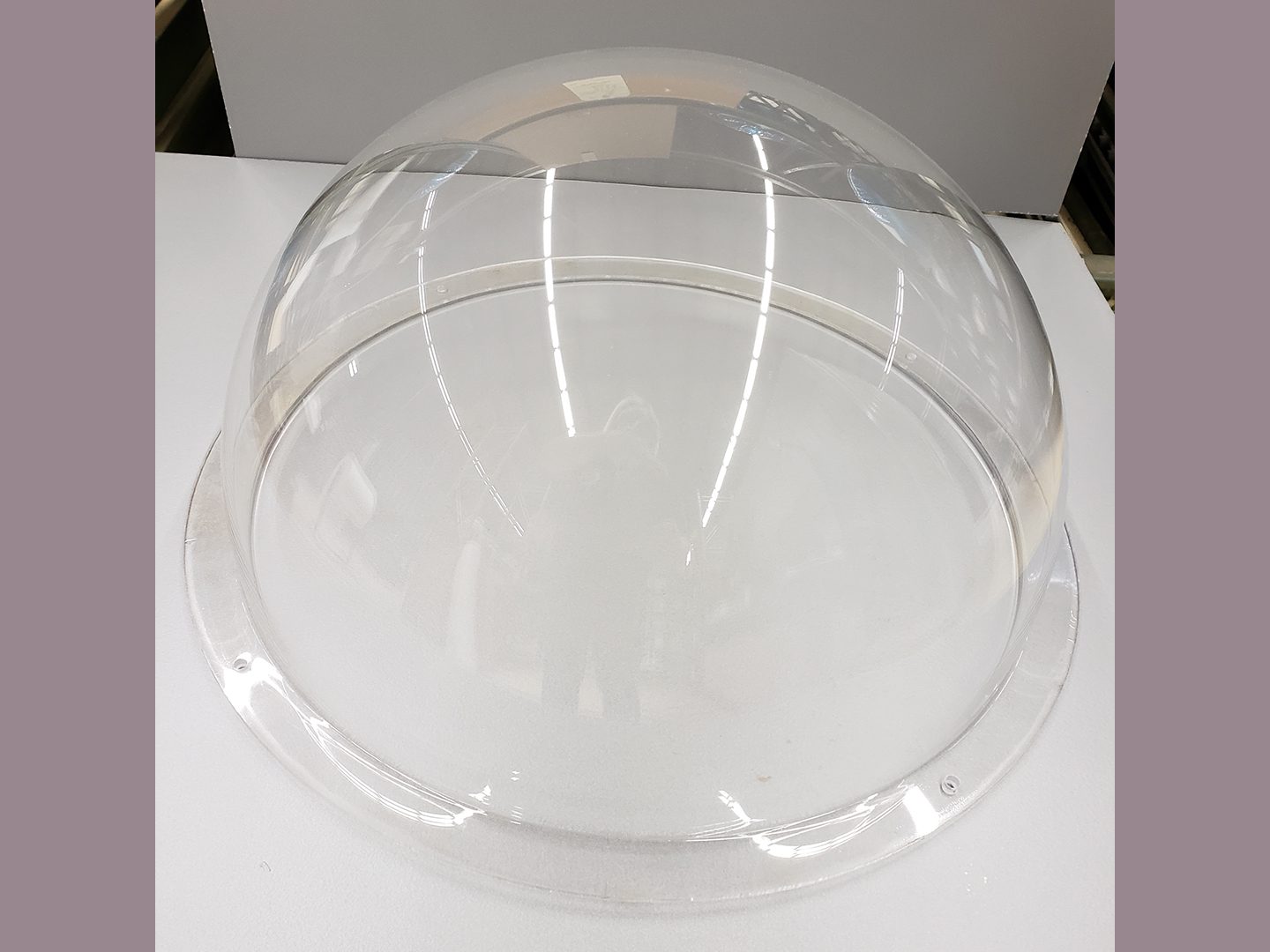

Dome Size Information:
22.00″ – Dome Diameter
24.00″ – Flange Diameter
11.00″ – Apex
.118″- Thickness
Dome Diameter indicates measurement from inside of flange to inside of flange. Flange Diameter indicates measurement from outside of flange to outside of flange. Apex is the measurement from the bottom of the flange to the top of the dome (height). Each dome includes four (4) 1/4″ mounting holes at 90° on center. This product intended for outdoor use.
| Material Type | Polycarbonate |
| Overall Dome | 24″ |
| Bubble | 22″ |
| Inside Diameter | 22″ |
| Flange | 1″ |
| Height | 11″ |
| Thickness | 0.118″ |
| Color | Clear |
| Brand | – |
| Size | 22″ |
| Category | Polycarbonate Domes |
| Box Dimensions | 24x24x24 |
| Item SKU | GDOME-22PC3 |
